How to Replace a Headlight Bulb on a 2016 Honda CR-V

Published April 9, 2026 | By matt

Replacing a headlight bulb sounds intimidating if you’ve never done it—but on a 2016 CR-V, it’s actually a quick, no-tools-needed job if you follow the right order.

Here’s a clean, step-by-step guide based on a real walkthrough so you don’t run into the common mistakes.

What You’ll Need

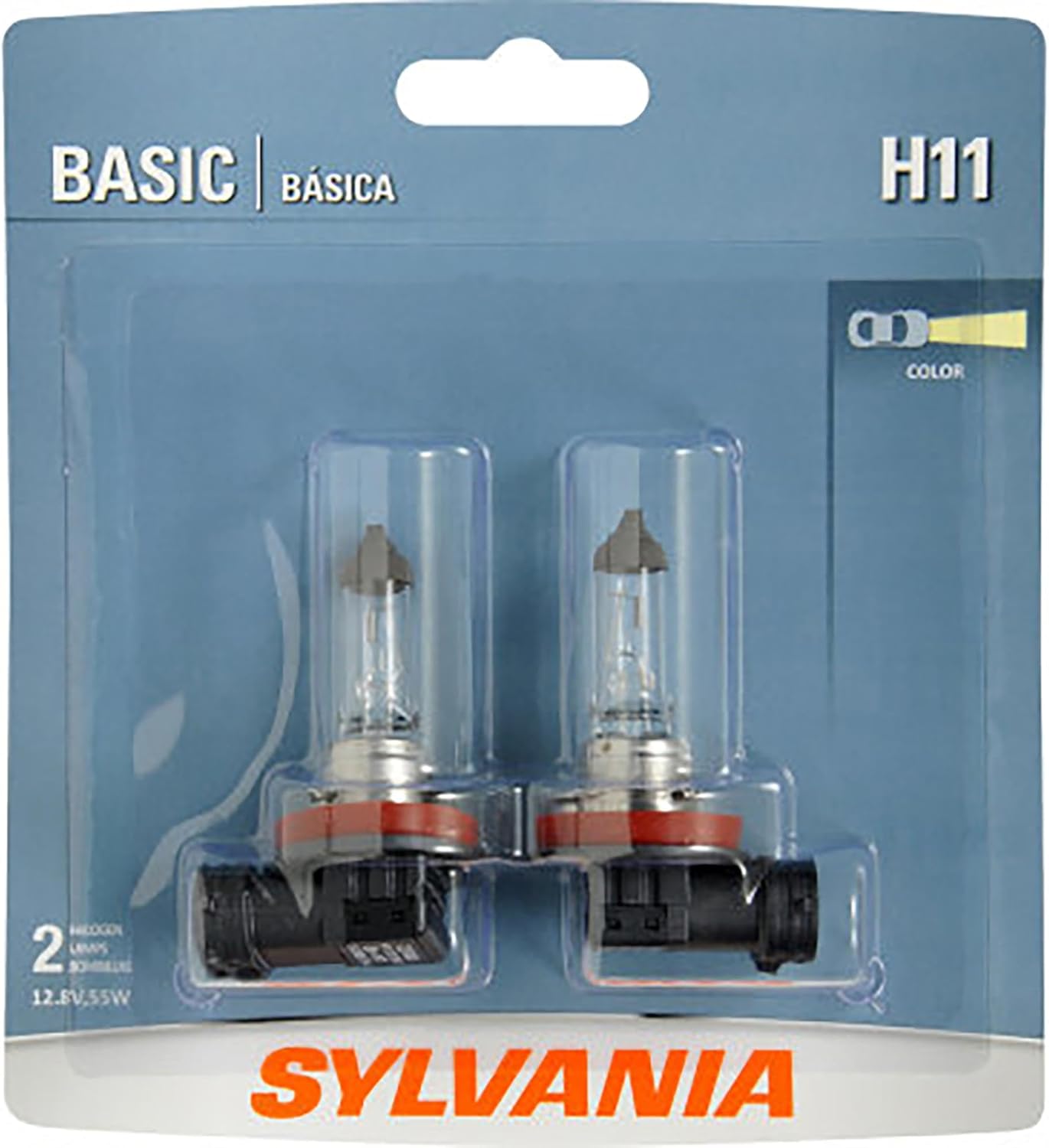

Replacement bulb: H11 (Philips or Sylvania H11 B2 works well)
Your hands (no tools required)

Open your hood and find the back of the headlight housing.

You’re working on the outermost bulb
You’ll see a connector plugged into the back of it

Click Here For Honda CRV Headlight Bulb H11

Step 2: Remove the Connector FIRST (Important)

This is where most people mess up.

Before touching the bulb itself:

Press down on the connector tab
Pull the connector straight off

Why this matters:
If you try to twist the bulb out first, you’ll hit the locking “teeth” and it’ll feel stuck. Forcing it can break the housing or connector.

Step 3: Remove the Old Bulb

Once the connector is off:

Rotate the bulb counterclockwise
Line it up with the notches
Pull it out smoothly

That’s your old bulb removed.

Step 4: Install the New Bulb

Take your new H11 bulb and:

Avoid touching the glass (oil from your fingers can shorten its life)
Insert it into the housing
Align the tabs
Rotate it into place until it locks

Step 5: Reconnect the Connector

Push the connector back onto the bulb
You should feel or hear it click into place

Step 6: Test the Headlight

Turn your headlights on and confirm everything works.

If it lights up—you’re done.

Quick Tips (That Save Headaches)

Always disconnect first — this is the difference between a 2-minute job and a frustrating one
Don’t force anything — if it won’t turn, something’s misaligned
Use the right bulb type — H11 is standard for this position
Keep the bulb clean — oils = shorter lifespan

Click Here For Honda CRV Headlight Bulb H11

Final Thoughts

This is one of those repairs that feels like it should require a mechanic—but doesn’t. Once you know the trick (disconnect first, then twist), it’s about as simple as it gets.

If you’ve got the hood open already, it’s worth checking the other side too—headlights tend to burn out around the same time.
